Tutorial 3: Generating surrogate maps on your own surfaces

While the functions in eigenstrapping are validated and tested with standard surface spaces, you can also generate nulls on your own surface *.gii. This is basically what happens with the subcortical surrogates (only these are *.nii)

You will need:

  • A single neuroimaging format cortical mesh *.gii

  • A brain map vector, in surface *.shape.gii or *.func.gii

  • A delimited *.txt file or a numpy array.

You would call the functions in exactly the same manner as before, but this time we’re going to use the class SurfaceEigenstrapping since we assume you want to save the eigenmodes and eigenvalues generated from the surface for future use.

Important

If you have installed the scikit-sparse library, then generating eigenmodes on your own surfaces will be much faster (particularly if the number of modes you want to calculate are high). If this is not installed, then the routine will use scipy.sparse.linalg.splu instead (much slower).

>>> from eigenstrapping import SurfaceEigenstrapping, datasets
>>> native = datasets.load_native_tutorial()
>>> native
{'surface': '/Users/nik/miniconda3/envs/eigen/lib/python3.9/site-packages/eigenstrapping/datasets/HCP/102816.L.midthickness_MSMAll.164k_fs_LR.surf.gii',
'thickness': '/Users/nik/miniconda3/envs/eigen/lib/python3.9/site-packages/eigenstrapping/datasets/HCP/102816.L.MyelinMap_BC.164k_fs_LR.func.gii',
'myelin': '/Users/nik/miniconda3/envs/eigen/lib/python3.9/site-packages/eigenstrapping/datasets/HCP/102816.L.corrThickness.164k_fs_LR.shape.gii'}

We expect there to be a non-zero correlation between the myelin map and the cortical thickness, but let’s test the significance of this result by generating eigenmodes on the surface they are projected to and randomly resampling them to get surrogate maps with matched spatial autocorrelation.

>>> surface = native['surface']
>>> myelin = native['myelin']
>>> thickness = native['thickness']
>>> eigen = SurfaceEigenstrapping(
                surface=surface,
                data=myelin,
                num_modes=200,
                use_cholmod=True #IMPORTANT: this will only work if you have `scikit-sparse` installed!
                )
Computing eigenmodes on surface using N=200 modes
TriaMesh with regular Laplace-Beltrami
Solver: Cholesky decomposition from scikit-sparse cholmod ...

>>> emodes = eigen.emodes
>>> print(emodes)
array([[ 0.00316884, -0.0023195 , -0.00534001, ..., -0.00085954,
    -0.00160245,  0.00160581],
   [ 0.0053148 ,  0.00171283, -0.00341847, ..., -0.00107347,
     0.00499724,  0.00266957],
   [ 0.00276907,  0.0033566 ,  0.00208069, ..., -0.00177513,
    -0.0010117 ,  0.00481352],
   ...,
   [-0.00390473,  0.00401391, -0.0009278 , ...,  0.00306122,
    -0.0018166 ,  0.00296925],
   [-0.00387439,  0.00402319, -0.00089265, ...,  0.00292008,
    -0.0018992 ,  0.00316154],
   [-0.00386044,  0.0039866 , -0.00086383, ...,  0.00274796,
    -0.00211211,  0.00252366]])

Let’s plot the first few eigenmodes on the surface to make sure they make sense.

>>> from nilearn import plotting
>>> for i in range(3):
        y = emodes[:, i]
        plotting.plot_surf(
            surf_mesh=surface,
            surf_map=y
        )

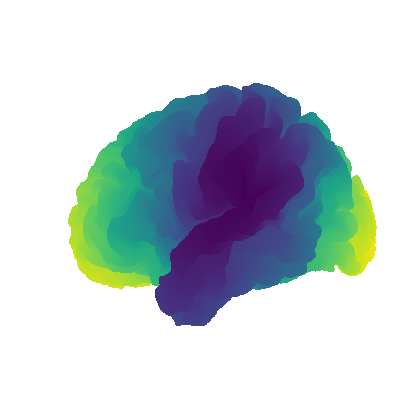

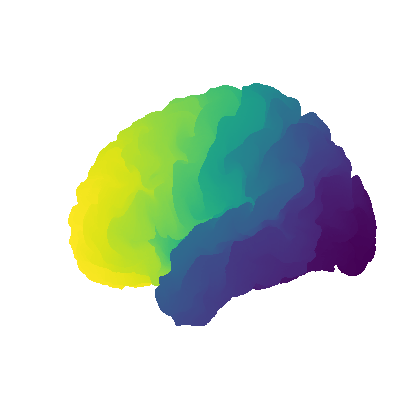

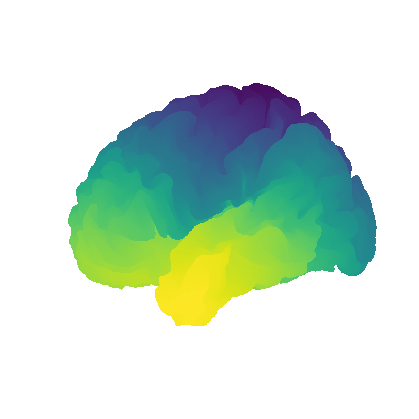

../_images/tutorial_ownsurface1.png ../_images/tutorial_ownsurface2.png ../_images/tutorial_ownsurface3.png

We can use these eigenmodes to generate surrogate maps, but in order to check their fit to the original variogram, we need to calculate the distance matrix first. We can do this by using eigenstrapping.geometry.geodesic_distmat(). Bear in mind this may take up to 8 hours depending on how dense the mesh is (this can be sped up by using multiple processes and other things, see the function).
